1217756-1
Manufacturer:
TE Connectivity
Mfr.Part #:
1217756-1
Datasheet:
Description:

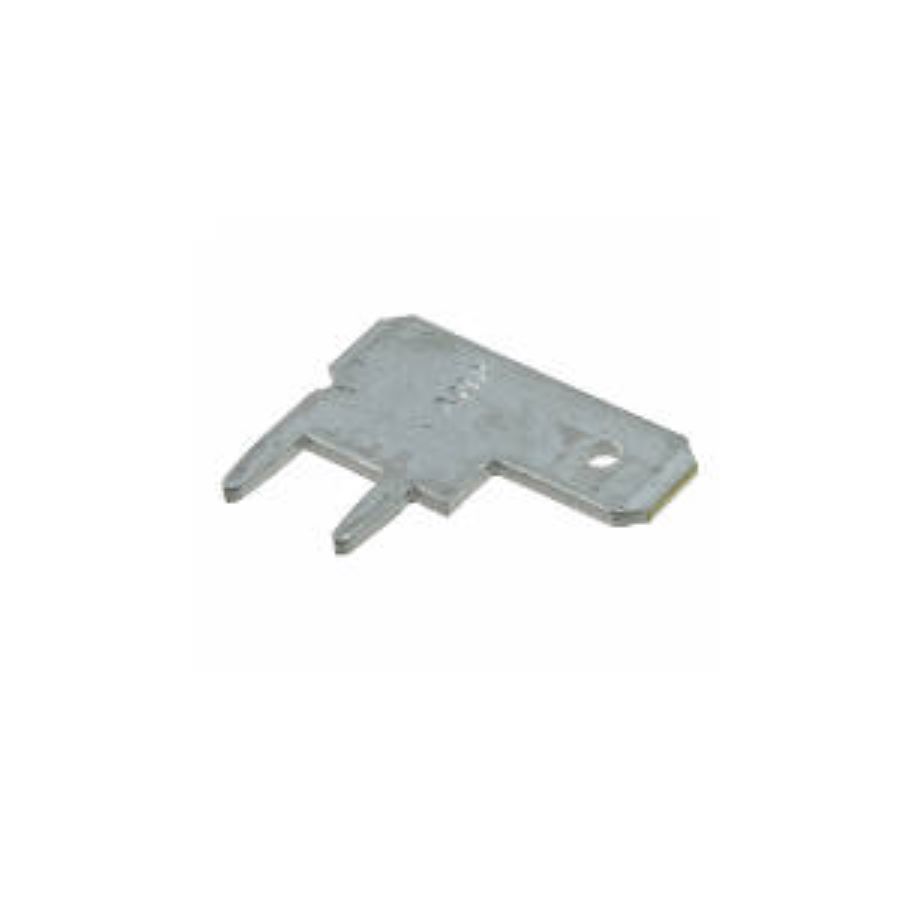

Terminals Through Hole Male
| Parameter | Value |
|---|---|
| Length | 6.35 mm |
| Termination | Tab |
| Height | 7.47 mm |
| Material | Brass |
| Packaging | Bulk |
| Depth | 14.61 mm |
| Radiation Hardening | No |
| RoHS | Compliant |
| Contact Plating | Tin |
| Contact Material(Contact Finish) | Brass |
| Type | PC Tab |
| Lifecycle Status | Production (Last Updated: 3 days ago) |
| Gender | Male |
| ELV | Compliant |
| Body Material | Brass |
| Tab Width | 4.7498 mm |
| Hole Diameter | 1.397 mm |
| Insulation | Non-Insulated |
| Plating | Tin |
| Termination Style | Stud |
| Body Plating | Tin |
| PCB Thickness | 2.3622 mm |
| Insulated Wire Support | Yes |
| Mating Tab Width | 4.75 mm |
| Tab Length | 6.35 mm |
| Tab Thickness | 812.8 µm |
| Manufacturer Lifecycle Status | ACTIVE (Last Updated: 3 days ago) |
| Stud Size | 4.75 mm |
Stock: 318
Distributors
pcbx
pcbxUnit Price$0.17616
Ext.Price$0.17616
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.17616 | $0.17616 |
| 10 | $0.16001 | $1.60010 |
| 50 | $0.14534 | $7.26700 |
| 100 | $0.13034 | $13.03400 |
| 500 | $0.11689 | $58.44500 |
| 1000 | $0.11138 | $111.38000 |
| 3000 | $0.10613 | $318.39000 |
